Animating a Sound Wave

I’ve been teaching phonetics for the first time in a while, and I wanted to make some animations illustrating how sounds are pressure waves in propagating through the air. I worked how how to do this in a fairly tidy way, again leveraging the new stat_manual() from ggplot2, and gganimate.

source(here::here("_defaults.R"))
library(tidyverse)
library(scales)
library(gganimate)
library(geomtextpath)
library(ggdiagram)
library(scico)

No Sound

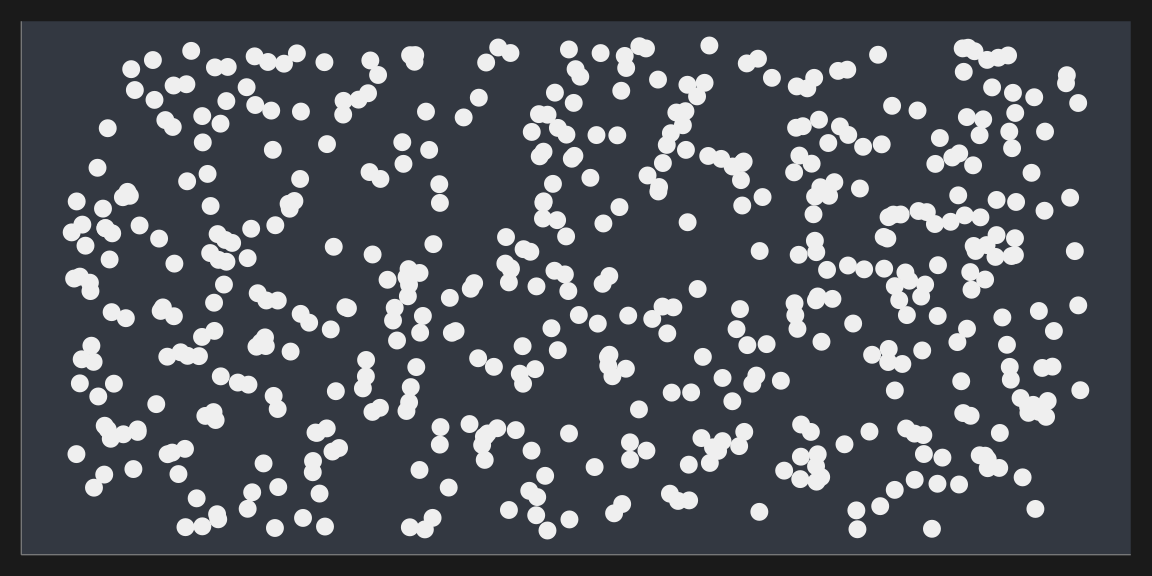

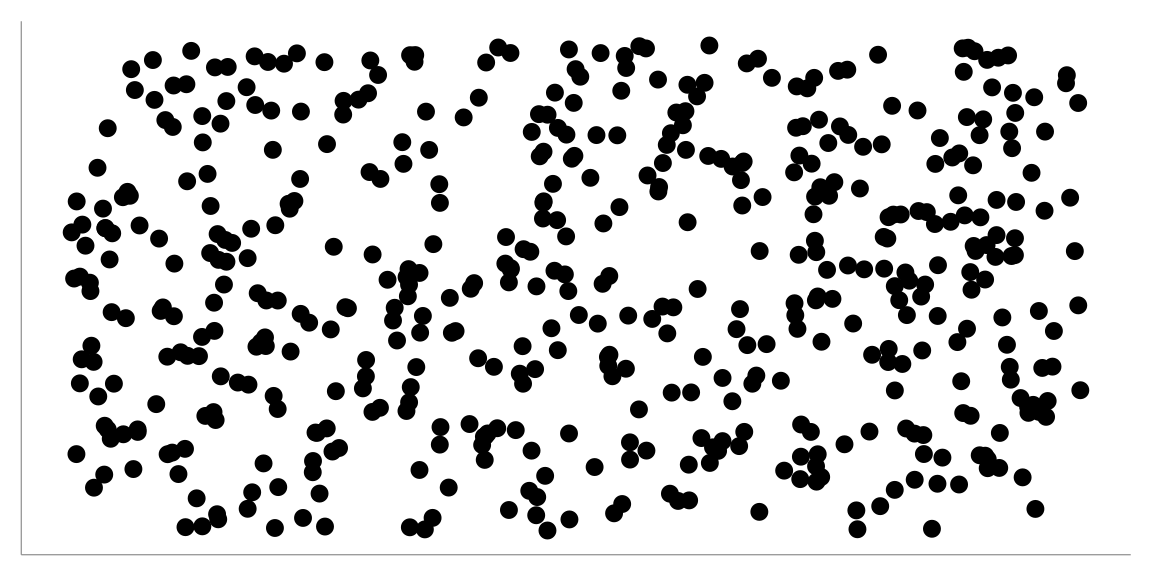

For the baseline of my animations, I’m going to use uniformly distributed points 2 cycles wide, and 1 tall.

set.seed(2025)
tibble(
  x = runif(500, min = 0, max = 2),
  y = runif(500, min = 0, max = 1)
) ->
  uniform

NoteThe no_x, no_y themes

theme_no_x

function (...)
{
    theme_sub_axis_x(text = element_blank(), title = element_blank())
}

theme_no_y

function (...)
{
    theme_sub_axis_y(text = element_blank(), title = element_blank(),
        ...)
}

uniform |>
  ggplot(
    aes(x, y)
  ) +
  geom_point() +
  theme_no_x() +
  theme_no_y()

last_plot() + theme_darkmode() +
  theme_no_x() +
  theme_no_y()

A static view

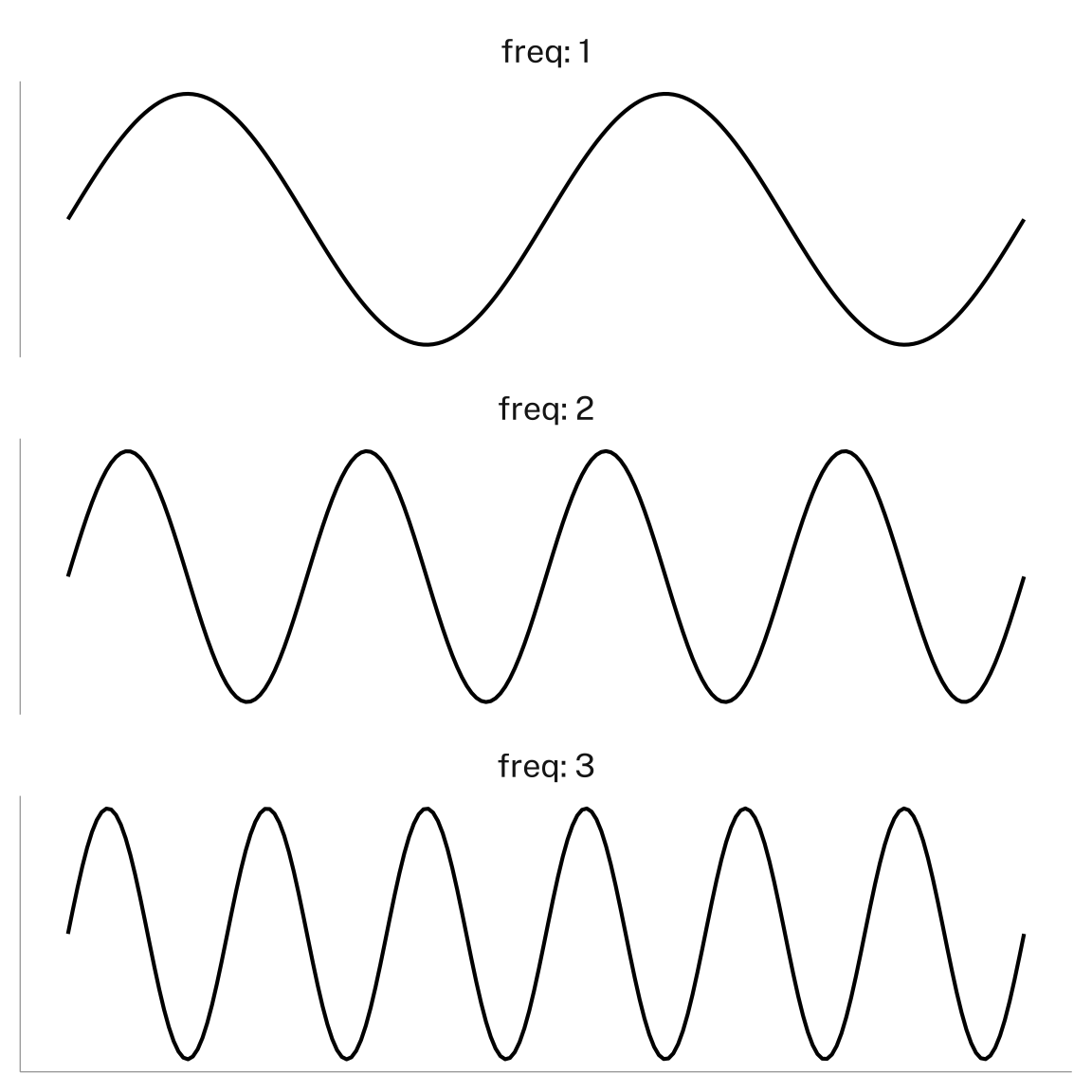

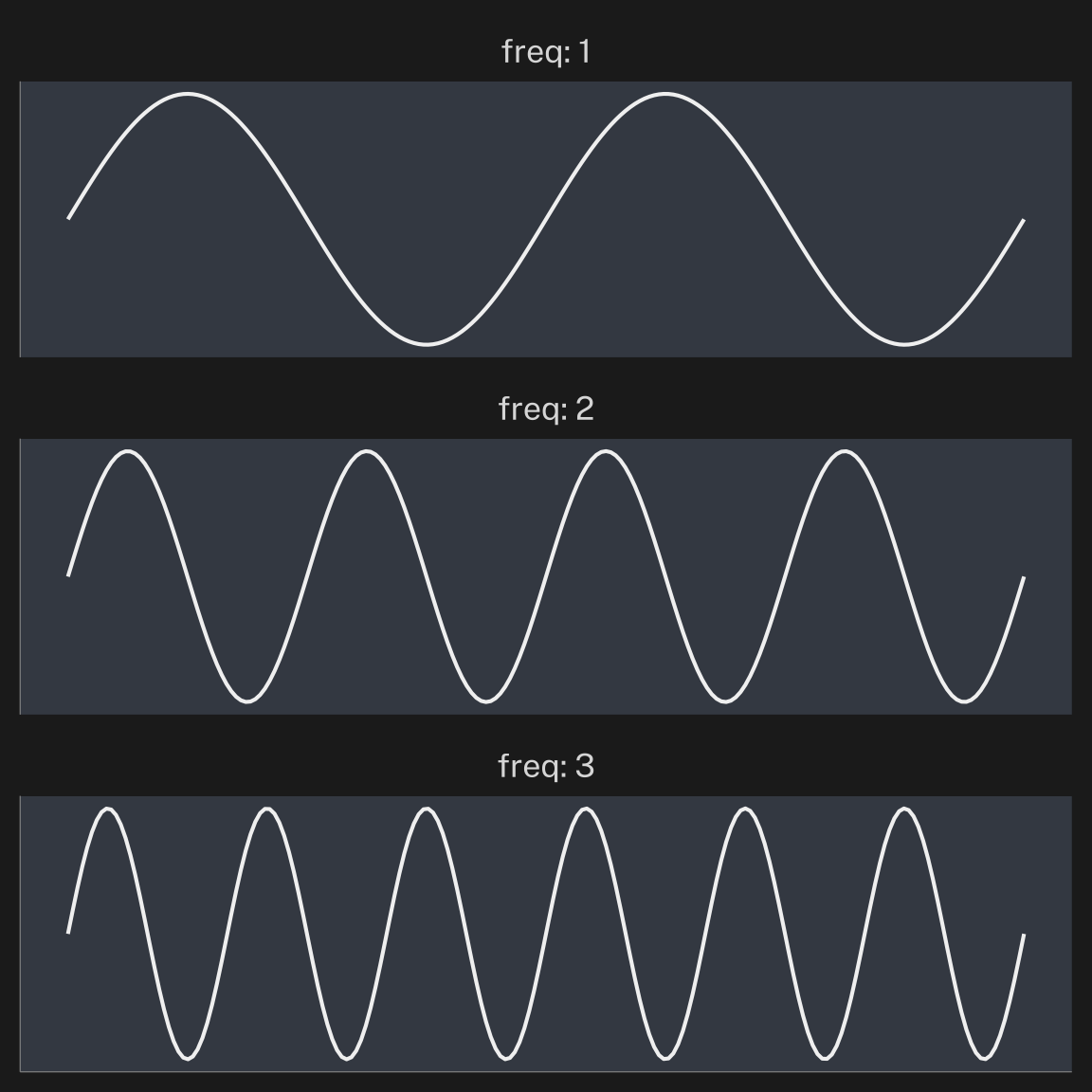

Next, I had to work out how a “static” visualization of the sound wave would look. The typical visualization of a sine wave, representing air pressure changes, is fairly straightforward. For use as a stat_manual() function, I wanted to make it flexible enough for me to define a frequency for the sine wave in the ggplot() call.

make_sine <- function(df){
  # if there's no `freq` column
  # set `freq` to 1.
  if (!"freq" %in% names(df)) {
    df$freq <- 1
  }

  df |>
    mutate(
      y = sin(
        (freq * x * 2 * pi)
      )
    )
}

expand_grid(
  x = seq(0,2, length = 200),
  freq = c(1,2,3)
) |>
  ggplot(
    aes(
      x, freq = freq
    )
  )+
  geom_line(
    aes(
      y = after_stat(y)
    ),
    stat = "manual",
    fun = make_sine
  ) +
  facet_wrap(
    ~freq,
    ncol = 1,
    label = label_both
  )+
  theme_no_x() +
  theme_no_y()

last_plot() + theme_darkmode() +
  theme_no_x() +
  theme_no_y()

Ok, next, I want to be able to displace the points representing air molecules to the left or the right depending so that they cluster together at the peaks of the sine waves, and spread apart at the troughs. So if a point is at a peak or a trough, it should be relatively stationary, but if a point is transitioning between a peak and trough, it should have maximal displacement.

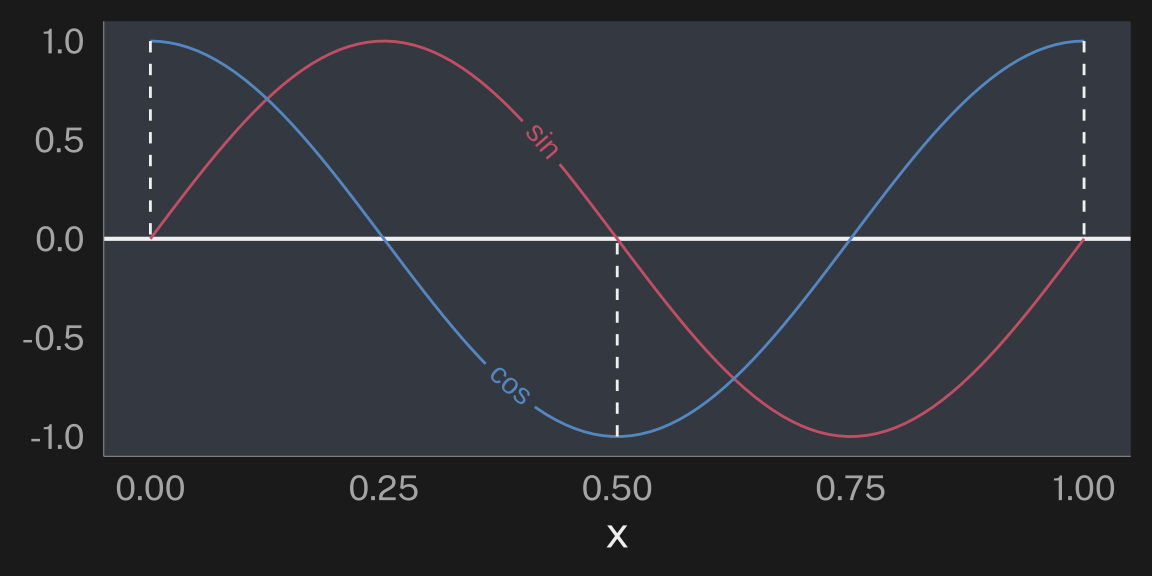

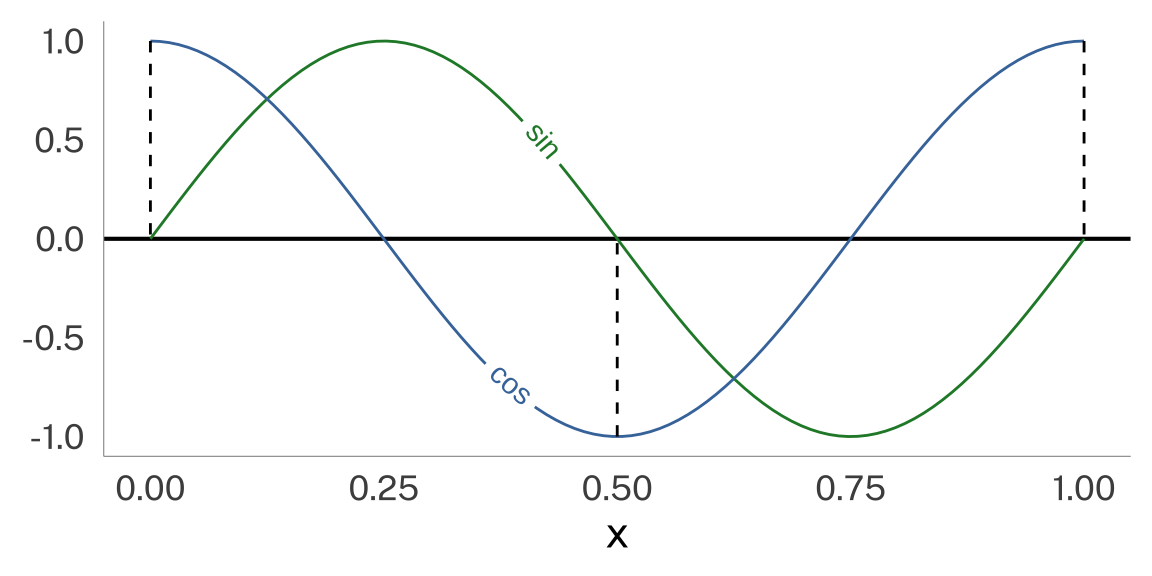

That is, I need to displace each point proportional to the rate of change of the sine curve, which is given by the cosine curve. So the displacement function should be the same as make_sine(), but subbing in cos().

tibble(
  x = seq(0,1,length = 100),
  sin = sin(x * 2 * pi),
  cos = cos(x * 2 * pi)
) |>
  ggplot(
    aes(x = x)
  ) +
  geom_hline(yintercept = 0) +
  geom_textline(
    aes(y = sin, color = "sin"),
    label = "sin",
    hjust = 0.4,
    show.legend = F
  ) +
  geom_textline(
    aes(y = cos, color = "cos"),
    label = "cos",
    hjust = 0.4,
    show.legend = F
  ) +
  ob_segment(
    ob_point(c(0,  0.5, 1),c(1, -1,  1)),
    ob_point(c(0,  0.5 ,1), c(0,0,0)),
    linewidth = 0.5,
    linetype = 2
  ) +
  labs(y = NULL)

last_plot() + theme_darkmode()

make_disp <- function(df){
  # if there's no `freq` column
  # set `freq` to 1.
  if (!"freq" %in% names(df)) {
    df$freq <- 1
  }

  df |>
    mutate(
      disp = cos(
        (freq * x * 2 * pi)
      )
    )
}

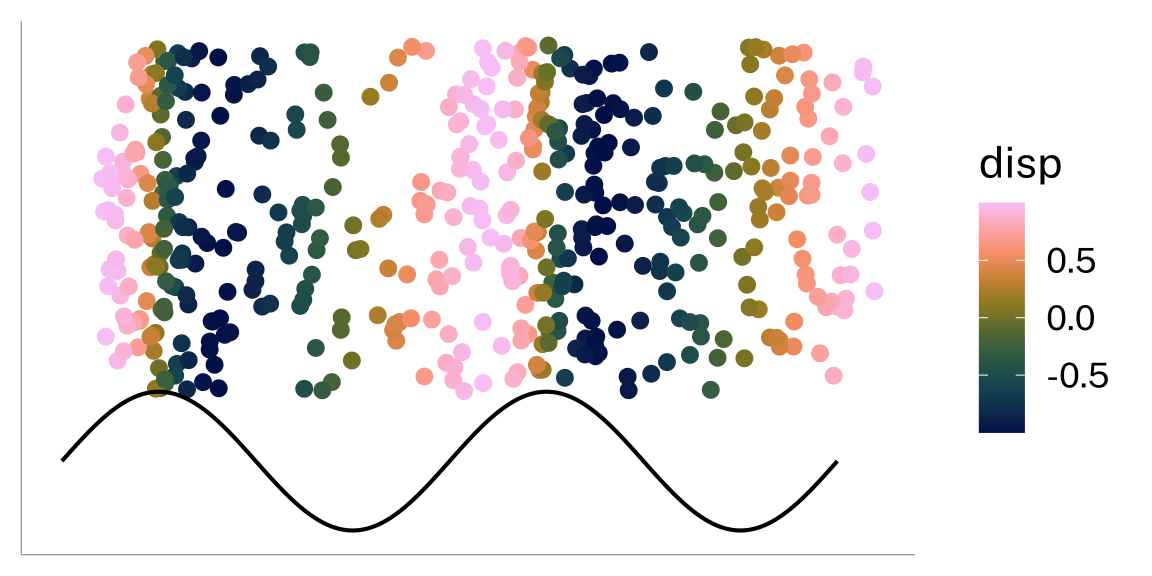

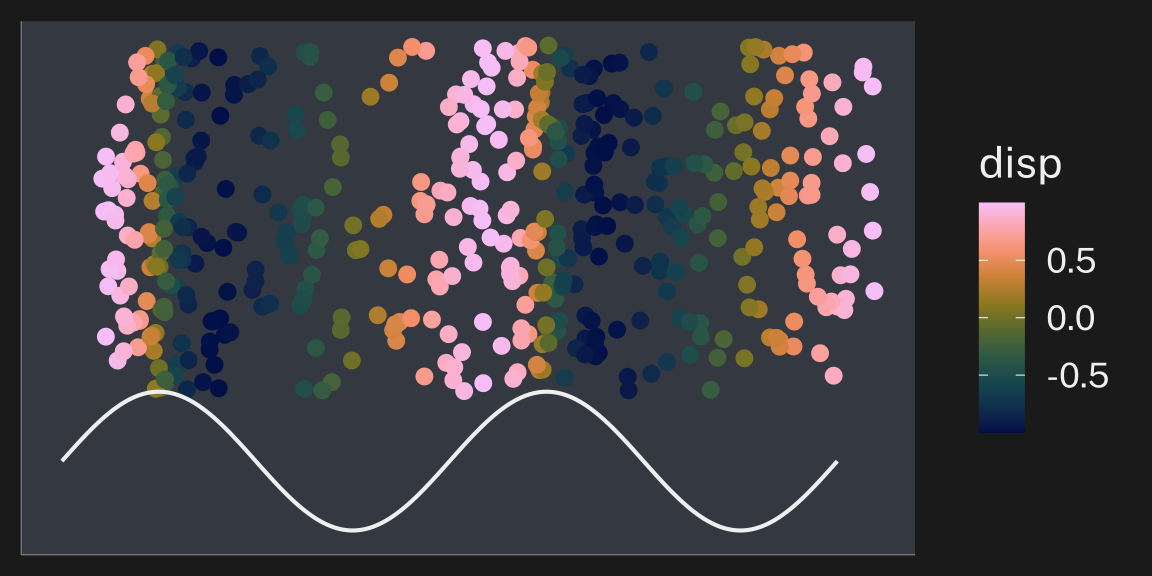

I’ve colored the points according to their displacement just to show that we get high pressure areas where points displaced to the right and points displaced to the left meet.

uniform |>
  ggplot(
    aes(x, y)
  ) +
  geom_point(
    aes(
      nudge_x = after_stat(disp * 0.1),
      color = after_stat(disp)
    ),
    stat = "manual",
    fun = make_disp,
    position = "nudge"
  ) +
  geom_line(
    data = tibble(
      x = seq(0,2, length = 200)
    ),
    aes(
      y = after_stat((y - 1) * 0.2)
    ),
    stat = "manual",
    fun = make_sine
  ) +
  theme_no_y() +
  theme_no_x()

last_plot() + theme_darkmode() +
  theme_no_y() +
  theme_no_x()

Great! Now to make it move!

Animating it

I’ll need both a sine wave making function and a displacement making function that takes time into account, and shifts the phase accordingly. Finding the right math for this can be a little tricky, but implementing it is pretty straightforward. For reasons I don’t completely understand, in order to get the wave to propagate from left to right, I need to subtract the phase shift.

make_moving_sine <- function(df){
  params <- c("freq", "t")
  for (p in params){
    if (!p %in% names(df)){
      df[p] <- 1
    }
  }

  df |>
    mutate(
      y = sin(
        (freq * (x - t)* 2 * pi)
      )
    )
}

expand_grid(
  x = seq(0, 2, length = 200),
  t = seq(0, 3, length = 200),
  freq = c(1, 2, 4)
) |>
  ggplot(
    aes(
      x, freq = freq, t = t
    )
  ) +
  geom_line(
    aes(
      y = after_stat(y)
    ),
    stat = "manual",
    fun = make_moving_sine
  ) +
  facet_wrap(~freq, ncol = 1) +
  transition_time(t)+
  theme_no_y() +
  theme_no_x() ->
  moving_sine

moving_sine
moving_sine + theme_darkmode() +
  theme_no_y() +
  theme_no_x()

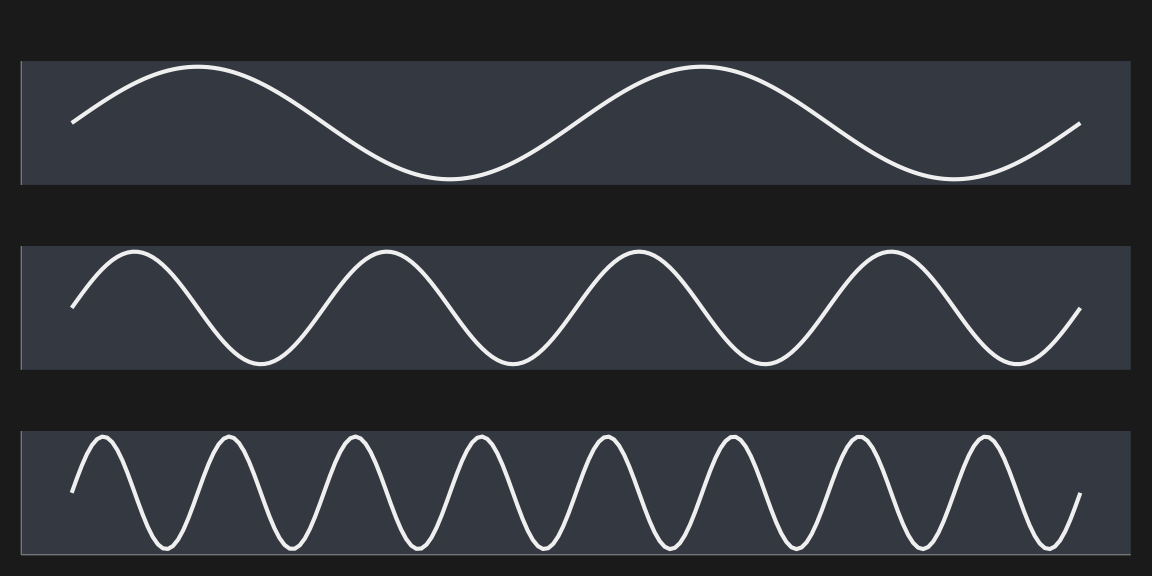

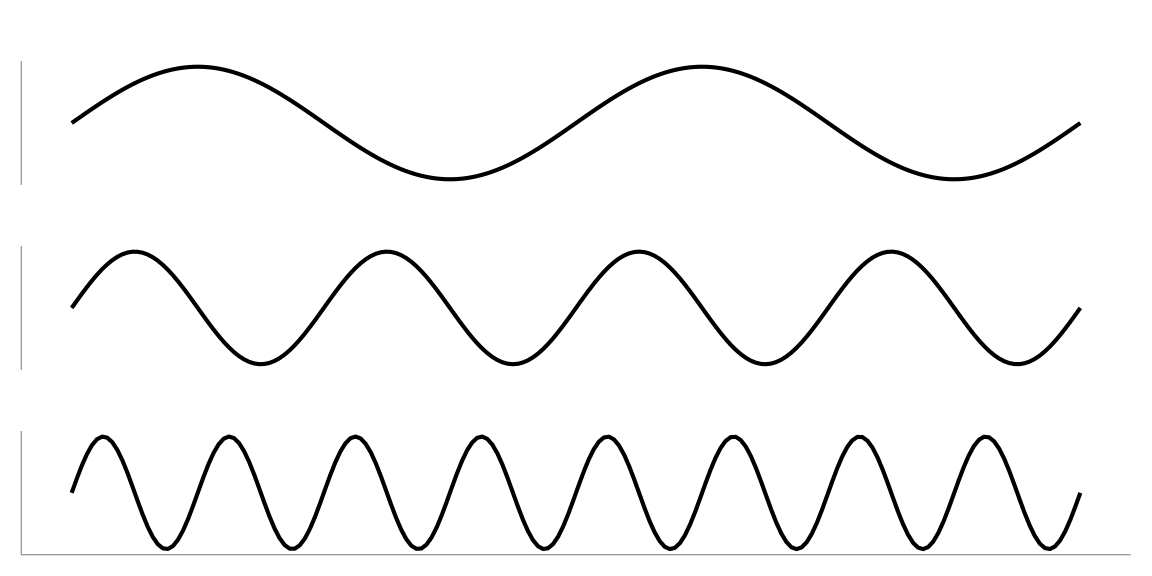

I really like this visualization because you can really see how the signals are moving at the same speed, but the one with a shorter wavelength has a faster frequency.

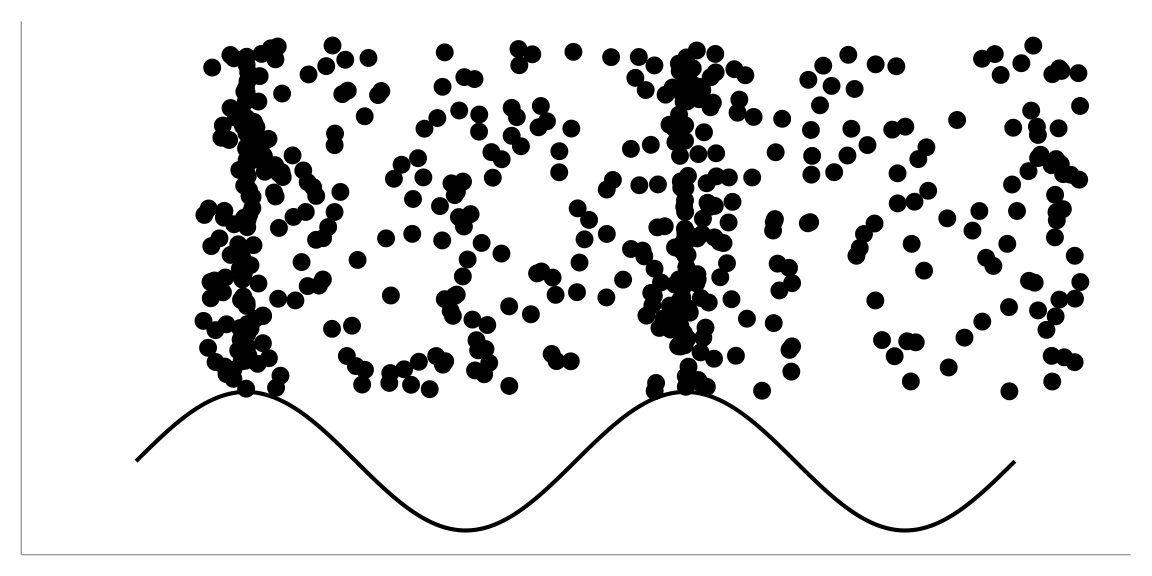

make_moving_disp <- function(df){
  params <- c("freq", "t")
  for (p in params){
    if (!p %in% names(df)){
      df[p] <- 1
    }
  }

  df |>
    mutate(
      disp = cos(
        (freq * (x - t)* 2 * pi)
      )
    )
}

tibble(
  x = runif(500, max = 2),
  y = runif(500),
  row_id = 1:500
) |>
  reframe(
    .by = row_id,
    x = x,
    y = y,
    t = seq(0, 3, length = 200)
  ) ->
  air

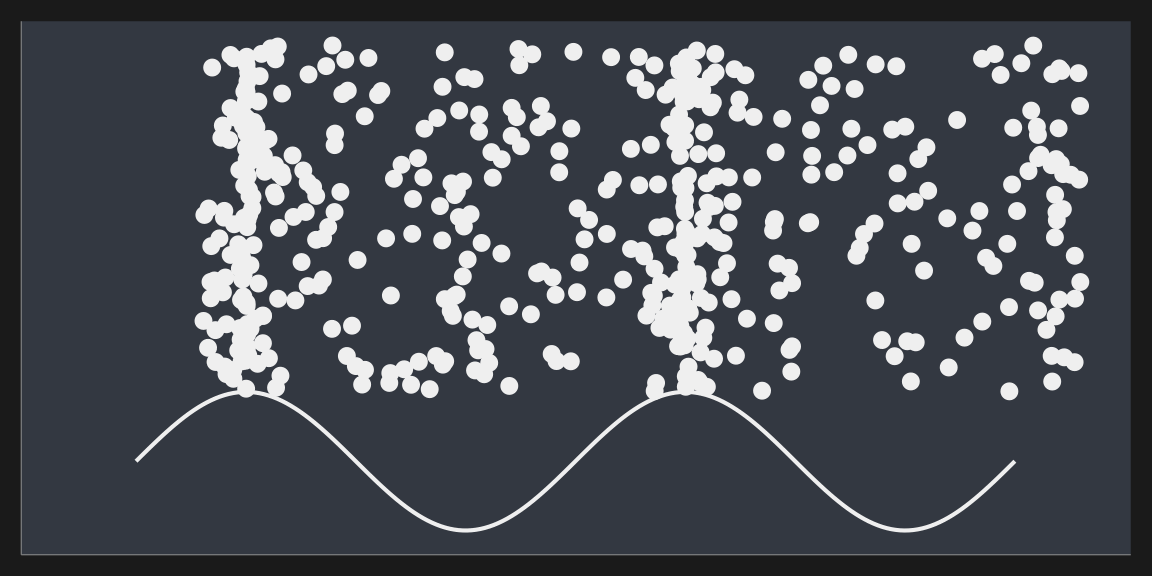

air |>
  ggplot(
    aes(x, y, freq = 1, t = t)
  ) +
  geom_point(
    aes(
      nudge_x = after_stat(disp * 0.15)
    ),
    stat = "manual",
    fun = make_moving_disp,
    position = "nudge"
  ) +
  geom_line(
    data = expand_grid(
      x = seq(0,2, length = 200),
      t = seq(0, 3, length = 200)
    ),
    aes(
      y = after_stat((y - 1) * 0.2)
    ),
    stat = "manual",
    fun = make_moving_sine
  ) +
  transition_time(t) +
  theme_no_x() +
  theme_no_y() ->
  air_wave

air_wave
air_wave + theme_darkmode() +
  theme_no_x() +
  theme_no_y()

Bonus

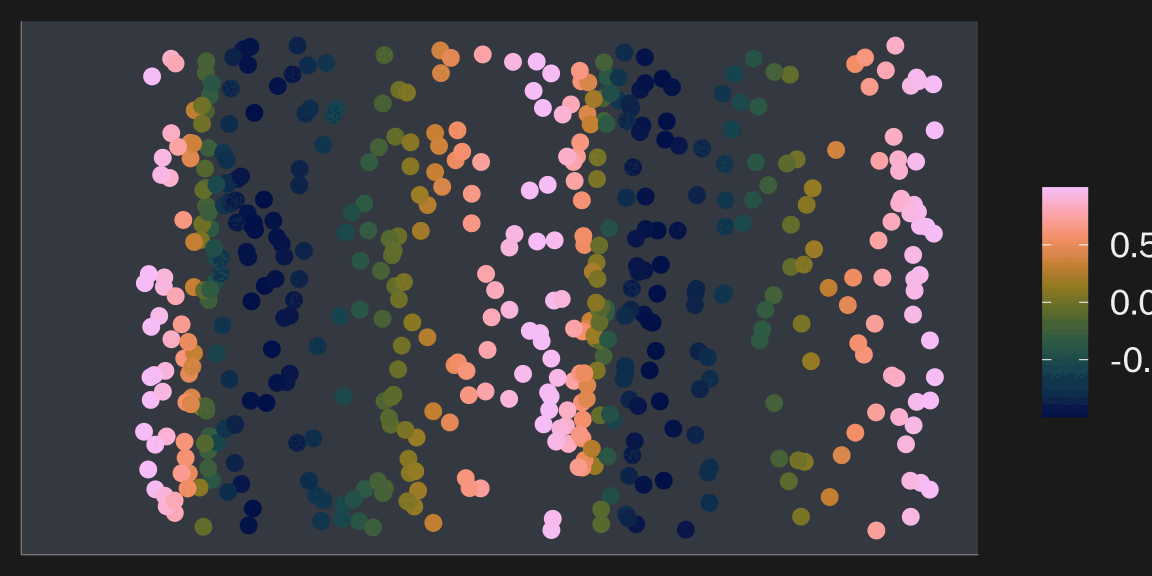

Here’s a bonus gif, just cause I found it really pretty when I mapped the point color to the displacement.

air |>
  ggplot(
    aes(x, y, freq = 1, t = t)
  ) +
  geom_point(
    aes(
      nudge_x = after_stat(disp * 0.1),
      color = after_stat(disp)
    ),
    stat = "manual",
    fun = make_moving_disp,
    position = "nudge"
  ) +
  transition_time(t) +
  theme_no_x() +
  theme_no_y() ->
  glimmer

glimmer
glimmer + theme_darkmode() +
  theme_no_x() +
  theme_no_y()
