Day 9

list()

Author

Josef Fruehwald

Published

December 9, 2022

library(tidyverse)
library(ggdark)
library(khroma)
library(showtext)
library(scales)
font_add_google(name = "Mountains of Christmas", family = "christmas")
font_add(family = "Noto Emoji", regular = file.path(font_paths()[2], "NotoEmoji-VariableFont_wght.ttf"))

showtext_auto()

theme_set(dark_theme_gray() +
            theme(title = element_text(family = "christmas", size = 20)))

knitr::knit_hooks$set(crop = knitr::hook_pdfcrop)

Part 1

Ok… step 1 I think is a function for calculating the distance between H and T.

Head <- c(2,2)
Tail <- c(1,1)
x <- (Head - Tail)^2
max(x)

[1] 1

Ok, I think if \(\max((H-T)^2) <=1\) then we don’t update, otherwise, update.

move_decision <- function(Head, Tail){
  distance <- (Head-Tail) ^2
  return(max(distance) > 1)
}

move_decision(c(0,0), c(0,1))

[1] FALSE

move_decision(c(0,0), c(1,0))

[1] FALSE

move_decision(c(0,0), c(1,1))

[1] FALSE

move_decision(c(0,0), c(0,2))

[1] TRUE

move_decision(c(0,0), c(1,2))

[1] TRUE

Now, decide which way to move.

## 1 Dim
Head <- c(0,0)
Tail <- c(0,2)
Head - Tail

[1]  0 -2

Can’t just do \(\frac{H-T}{2}\) because of the diagonal case

## 2 dim
Head <- c(0,0)
Tail <- c(1,2)
Head - Tail

[1] -1 -2

I think I can just use their sign though!

## 1 dim
Head <- c(0,0)
Tail <- c(0,2)
sign(Head - Tail)

[1]  0 -1

## 2 dim
Head <- c(0,0)
Tail <- c(1,2)
sign(Head - Tail)

[1] -1 -1

move_vector <- function(Head, Tail){
  sign(Head-Tail)
}

Ok, let’s load up the data and plan our history management.

route <- read_table("2022-12-9_assets/input.txt", col_names = FALSE)


── Column specification ────────────────────────────────────────────────────────
cols(
  X1 = col_character(),
  X2 = col_double()
)

route |> head()

# A tibble: 6 × 2
  X1       X2
  <chr> <dbl>
1 U         1
2 L         1
3 D         2
4 U         2
5 R         2
6 D         1

I’ll make all steps explicit by multiplying out X1 by X2 times

full_route <-
  route |>
  mutate(all_steps = map2(X1, X2, ~tibble(step = rep(.x, .y)))) |>
  select(all_steps) |>
  unnest(cols = all_steps) |>
  mutate(step_num = (1:n()) + 1)

I think I’ll pre-compile an empty list to store head and tail states.

Head_list <- vector(mode = "list", length = max(full_route$step_num))
Tail_list <- vector(mode = "list", length = max(full_route$step_num))

Initial state

Head_list[[1]] <- c(0,0)
Tail_list[[1]] <- c(0,0)

Now, a function to return update move for the Head given U, D, L, R. I’ll make it a function but it could just be a named list

Head_move <- function(dir){
  move_list <- list(
    U = c(0,1),
    D = c(0,-1),
    L = c(-1,0),
    R = c(1,0)
  )
  return(move_list[[dir]])
}

Now, a function that takes:

Head move direction
step number
the Head states
the Tail states

And updates the Head and Tail states.

Ok, I hate this… but I’m going to use the global variables.

Head_Tail_update <- function(dir, step){
  Head_prev <- Head_list[[step-1]]
  Tail_prev <- Tail_list[[step-1]]
  head_movement <- Head_move(dir)

  Head_now <- Head_prev + head_movement
  if(move_decision(Head_now, Tail_prev)){
    tail_movement <- move_vector(Head_now, Tail_prev)
    Tail_now <- Tail_prev + tail_movement
  } else {
    Tail_now <- Tail_prev
  }
  Head_list[[step]] <<- Head_now
  Tail_list[[step]] <<- Tail_now
  return()
}

x <- map2(full_route$step, full_route$step_num, Head_Tail_update)

The answer

Tail_list |>
  reduce(rbind) |>
  unique() |>
  nrow()

[1] 6271

tail_pos_df <-
  Tail_list |>
  reduce(rbind) |>
  data.frame() |>
  mutate(part = "tail",
         step = 1:n())

head_pos_df <-
  Head_list |>
  reduce(rbind) |>
  data.frame() |>
  mutate(part = "head",
         step = 1:n())


all_pos <- bind_rows(tail_pos_df, head_pos_df)

all_pos |>
  ggplot(aes(X1, X2, color = step)) +
    geom_point(size = 0.2, alpha = 0.2) +
    coord_fixed()+
    scale_color_hawaii()+
    labs(x = "x",
         y = "y",
         title = "path of head and tail")+
    facet_wrap(~part)

Part 2

Ok, I think I can keep a lot of my functions the same, just the Tail state is now a list of 9 vectors, and every head movement involves updating the tail state 9 times.

Head_list <- rep(list(c(0,0)), max(full_route$step_num))
Tail_list <- map(1:max(full_route$step_num), ~rep(list(c(0,0)), 9))

Head_Tail_update2 <- function(dir, step){
  Head_prev <- Head_list[[step-1]]

  head_movement <- Head_move(dir)

  Head_now <- Head_prev + head_movement
  Head_list[[step]] <<- Head_now

  reference <- Head_now
  Tail_list[[step]] <<- Tail_list[[step-1]]

  for(i in 1:9){
    Tail_prev <- Tail_list[[step-1]][[i]]
    if(move_decision(reference, Tail_prev)){
      tail_movement <- move_vector(reference, Tail_prev)
      Tail_now <- Tail_prev + tail_movement
      Tail_list[[step]][[i]] <<- Tail_now
      reference <- Tail_now
    } else {
      # I've already copied the previous tail states
      # If this tail didn't move, none of the rest will either
      break
    }
  }
  return()
}

x <- map2(full_route$step, full_route$step_num, Head_Tail_update2)

map(Tail_list, ~.x[[9]]) |>
  reduce(rbind) |>
  unique() |>
  nrow()

[1] 2458

tail_pos_df <-
  map(Tail_list, ~.x[[9]]) |>
  reduce(rbind) |>
  data.frame() |>
  mutate(part = "tail",
         step = 1:n())

## head_pos_df the same

all_pos <- bind_rows(tail_pos_df, head_pos_df)

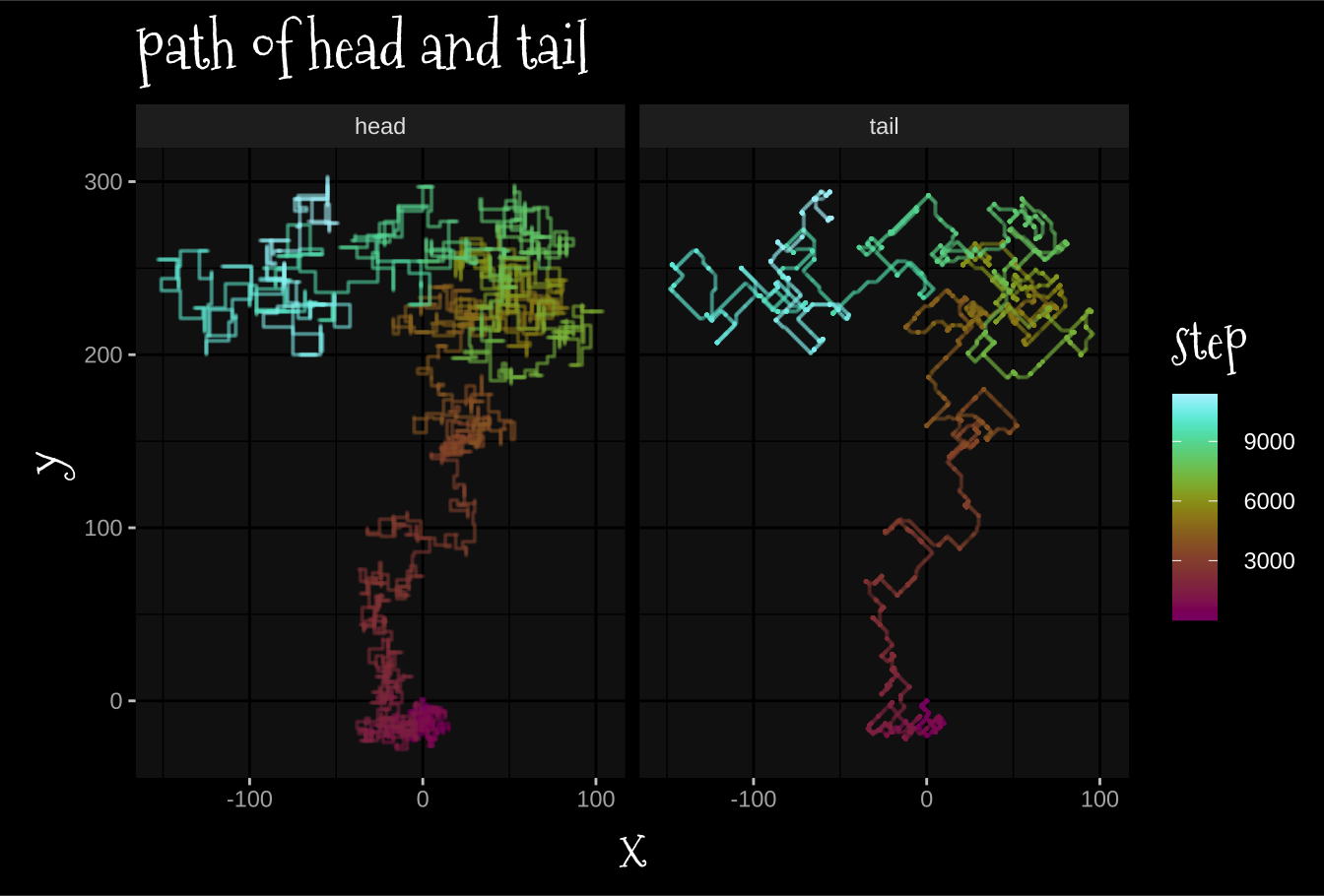

all_pos |>
  ggplot(aes(X1, X2, color = step)) +
    geom_point(size = 0.2, alpha = 0.2) +
    coord_fixed()+
    scale_color_hawaii()+
    labs(x = "x",
         y = "y",
         title = "path of head and tail")+
    facet_wrap(~part)
